Ultra Fast DC
Charge complex T
320kW
Powerful AE Charge complex T,
updated by EVA Chargers
from 200kW €25,000
to 320kW €33,500
EXW Prices
Powerful complex for fast charging
This charging complex is ideal for all places where fast charging is ind emend.
These locations include:
Gas stations
Highways
Gyms
Malls
Grocery
Connectors and capacities
We recommend the following hardware standards for charging stations. However, you can customize the equipment to best suit your needs. Just specify which connectors you want to see on the station when ordering.
Basic connectors DC
CCS Type 2
1000V / 320kW
GB/T
1000V / 320kW
CHAdeMO
1000V / up to 80kW
DC (optional)
CCS Type 1
1000V / 320kW
AC (optional)
or
Type 2 (Mennekes)
400V / 32A / 22kW
Type 2 socket
400V / 32A / 22kW
Dynamic power distribution between DC connectors when charging several cars simultaneously.
Communication
Information display:
LCD screen 17” in English / Italian / German / French / Spanish / Ukrainian / Polish / Czech / Macedonian / Russian / Any other language according to clients specifications
Methods of connecting the charging station to the billing system are available:
2G, 3G, 4G, LAN, Wi-Fi
OCPP protocol support:
1,6 JSON
Access and activation:
RFID cards (Mifare standard), local list memory - 10000+ cards Mobile application P&C by VIN code / credit card terminal choosed by owner
Support for the following payment methods:
Online terminal, Visa, MasterCard, American Express, Apple Pay, Google Pay
Size and installation
Mounting:
Floor mounting (on a concrete base)
Charging station size (H×W×D):
104.68 x 70.43 x 19.48 inch
2,659 x 1,789 x 495 mm
Length of cables:
From 14,7 ft / 4.5 m

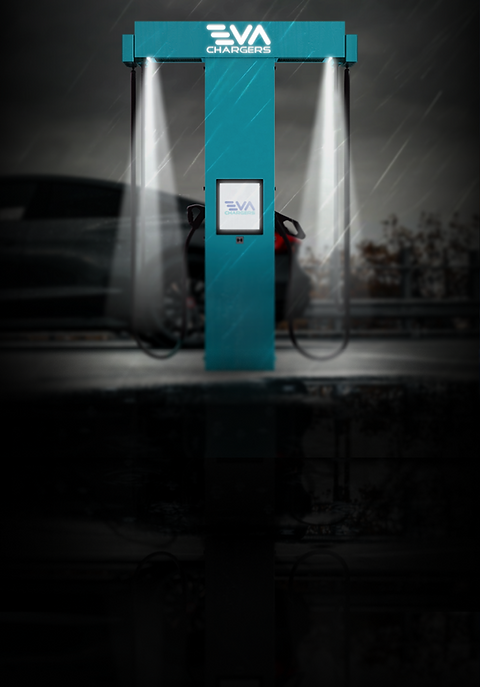

Charging station protection
Enclosure:
Stainless steel
Protective equipment:
The charging station is equipped with a controller with an electronic RCD (30mA, 3 phases)
Enclosure protection class IP54
Mechanical protection class IK10
Operating temperature range:
From ‐35°C to +50°C / -31°F to +122°F
Warranties and manufacturers
Warranty:
24 months
Charging station manufacturer:
Ukraine
CE, ISO, EAC and etc. (certification in progress)
The number of cars that can be charged at the same time:
5 cars
Tested with all EV cars and Plug-in Hybrid models
EXW Prices
We provide a wide range of charging station capacities so that you can choose the right package for you in terms of both price and power.
If necessary, you can change the configuration of the charging station and order unique branding by prior arrangement, but all touch screens must contain Eva Chargers logos, regardless of the customer's individual brand.
€25 000
200kW
€28 500
240kW
€31 500
280kW
€33 500
320kW
Additional options
+€500
Optional connector
+€500
Placement of an individual logo on the station
Separate billing (+10% to the cost)
If the station was on our billing or in roaming, you can disconnect it only 3 years after the station is installed.
Delivery time for components and manufacturing of the charging station is 60-90 days.
Depending on the season and the speed of delivery, the production time may vary, both upwards and downwards.
In the future, it will be possible to add V2G and a battery with a bi-directional module (DC-DC).
When installing a bi-directional module (DC-DC) or V2G at the station, the station's power will decrease by 25% (from 40kW to 30kW per module). The maximum power of the station with these options will be 150kW.
Calculation of the
station average payback
In order to calculate the payback* of a charging station, let's use the next steps:
The cost of the 320kW charging complex is €33,500
Minimum station load 10% of the day. Station charging (~2.5 h/day)
The charging station has a capacity of
320kW
Minimum net profit from sales of 1 kW
€0.2
1. Calculation of the min number of energy sales per day
Minimum operating time of the charging station
2.5h/day
Charging station capacity
320kW
Minimum electricity sales per day
800kWh
2. Calculation of the min profit from energy sales per day
Minimum electricity sales per day
800kWh
Minimum clear profit from sales of 1 kW
€0.2
Minimum profit from energy sales per day
€160
3. Calculating the payback of the station
Price of the charging station
€33,500
Minimum profit from energy sales per day
€160
Estimated payback period of the station
~209 days
According to these calculations, the estimated payback period for the plant is 209 days.
*Individual consumption per charging station may vary depending on geography, traffic corridor, proximity to highly-trafficked areas, daily load profile, etc.
